New FOTA Experience

nRF Cloud now uses Memfault's OTA engine to deliver firmware over-the-air (FOTA) updates. For application (app) updates, your devices keep working just as they do today — no firmware or SDK changes needed. All that changes is how you prepare and deploy an update.

This guide covers application FOTA. For modem firmware, jump to Modem and other firmware types.

What stays the same

For application FOTA, nothing changes on the device side:

• No firmware rebuild and no SDK upgrade.
• The same device protocols (CoAP, REST, and MQTT) and the same device authentication.
• Your devices download and apply updates the same way they do today.

New capabilities

The new experience adds fleet-scale release management capabilities, including:

• Staged rollouts — Release to a fraction of a cohort first, monitor, then expand to the full fleet. See Staged Rollout of a Release.
• Approval workflows — Gate a Release activation behind an explicit approval before it reaches production devices. See Requiring Approvals for Release Activations.
• Audit logs — See who changed what and when across your project, including release and deployment actions. See Audit Log.
• SBOM management — Upload and manage a Software Bill of Materials per software version for vulnerability tracking and compliance. See SBOM.
• Fleet-wide OTA update adoption — Track how new firmware versions propagate across your fleet over time with the Software Versions Chart, and see the exact next update each device will receive in the version matrix.

What changes for you

You now work with the following OTA model instead of legacy nRF Cloud bundles and jobs:

Legacy nRF Cloud	New nRF Cloud experience
Firmware bundle	Release with OTA Payloads
FOTA job	Deployment for activating a release
Device group / tag	Cohort can be used for targeting groups of devices
Per-device job execution status	Per-cohort version matrix

See Over-the-Air Updates (OTA) for the full OTA model.

Deploying your first release

Collect Version Information

When you create a Release in the new nRF Cloud experience, three fields have to match your device — otherwise it won't be offered the update:

1. Software Type — set it to app. Only the app software type gets application FOTA.

2. Hardware Version — match your device's board exactly. Use the board name your firmware is built for (CONFIG_BOARD, for example thingy91x), which is the same value the device reports as its board.

3. Software Version — must match exactly what the device reports. Where that value comes from depends on the sample and nRF Connect SDK version you build against:

   • Newer applications take it from the project's VERSION file: VERSION_MAJOR.VERSION_MINOR.PATCHLEVEL (add -EXTRAVERSION if you are using that argument as well).
   • Older applications and samples set it with CONFIG_APP_VERSION in prj.conf or a Kconfig overlay.

   If you are not sure which one applies to your application, don't guess: use the Software Version the device itself reports on its Device Details page in nRF Cloud, and bump from there.

Ensure the version you enter matches what the device reports

Your device says which version it's running and the nRF Cloud OTA engine looks at the releases active for that device's cohort to decide whether an update is available based on that info.

That's also why the version you type into the Release has to be the version the device will actually report. Upload a binary as 1.1.0 and it still says 1.0.0 after it boots, and nRF Cloud has no way to tell the update applied, so the same OTA payload would be sent to the device again.

Create a Release

Navigate to OTA Release -> Create Release and create your release.

For example, with the following info in your VERSION file

VERSION_MAJOR = 1
VERSION_MINOR = 5
PATCHLEVEL = 6
VERSION_TWEAK = 0
EXTRAVERSION = dev

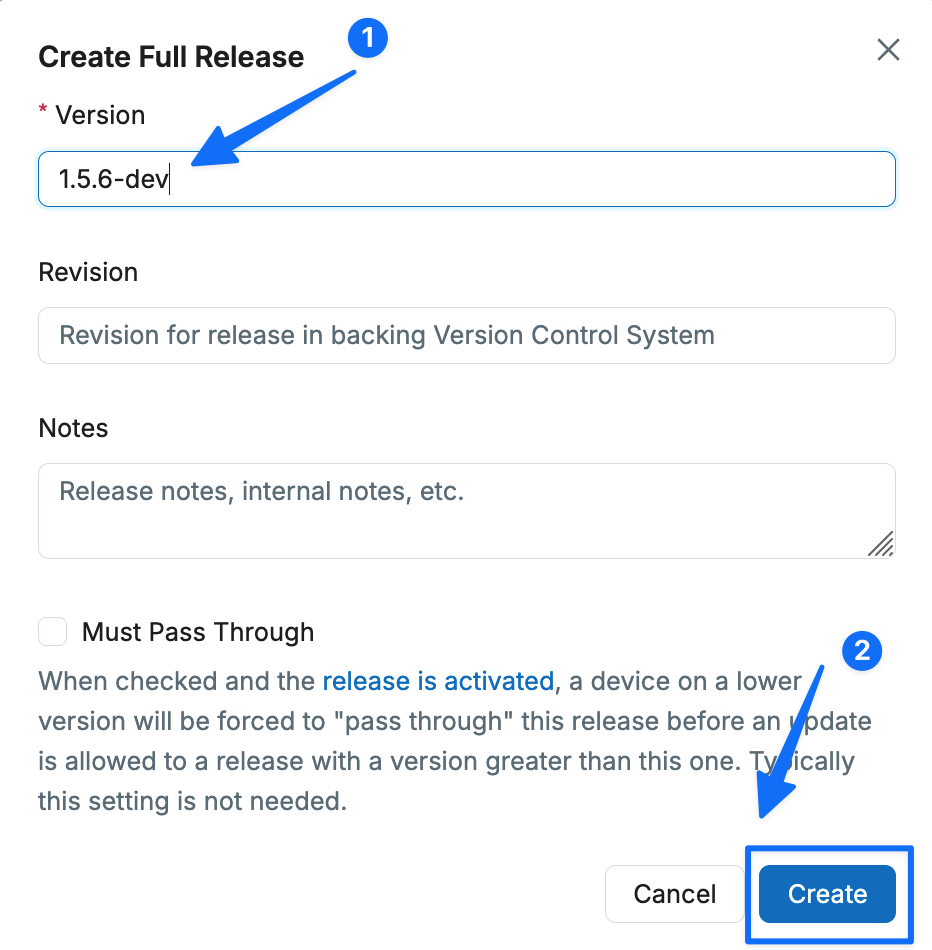

This is what should be populated in the UI:

Add OTA payload to the Release

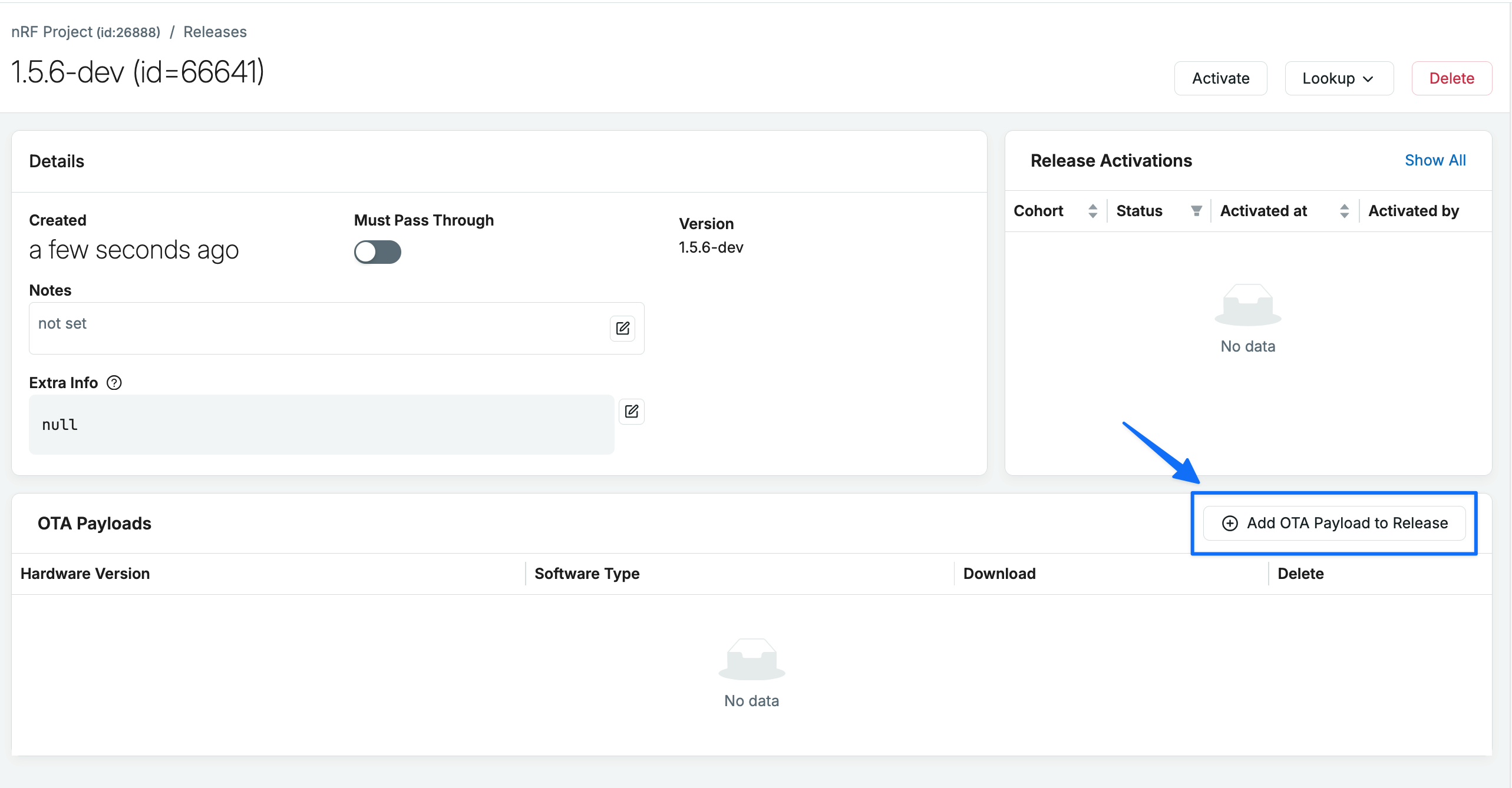

Next, upload the firmware binary (.bin) by clicking the "Add OTA Payload to Release":

Ensure the "Hardware Version" selected matched what you have set for CONFIG_BOARD and that you are selecting the correct .bin to update to.

tip

The binary is located in your application's build/ directory, typically at a location like build/app/zephyr/zephyr.signed.bin

CONFIG_BOARD setting can also be found in the build folder as well, typically build/app/zephyr/.config:

...
CONFIG_BOARD="thingy91x"
...

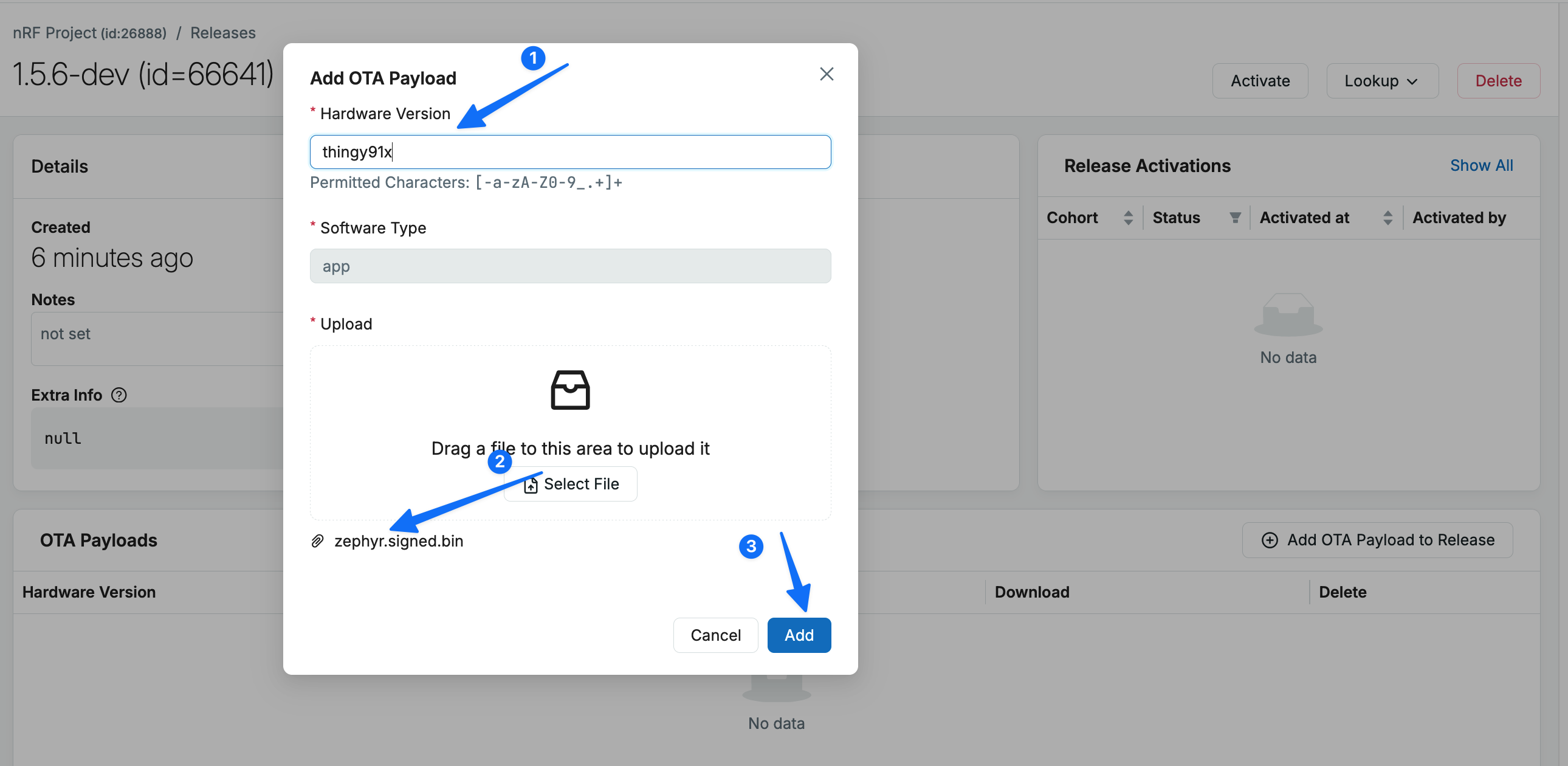

After submitting the right info, click "Add" to upload the binary:

Activate the Release

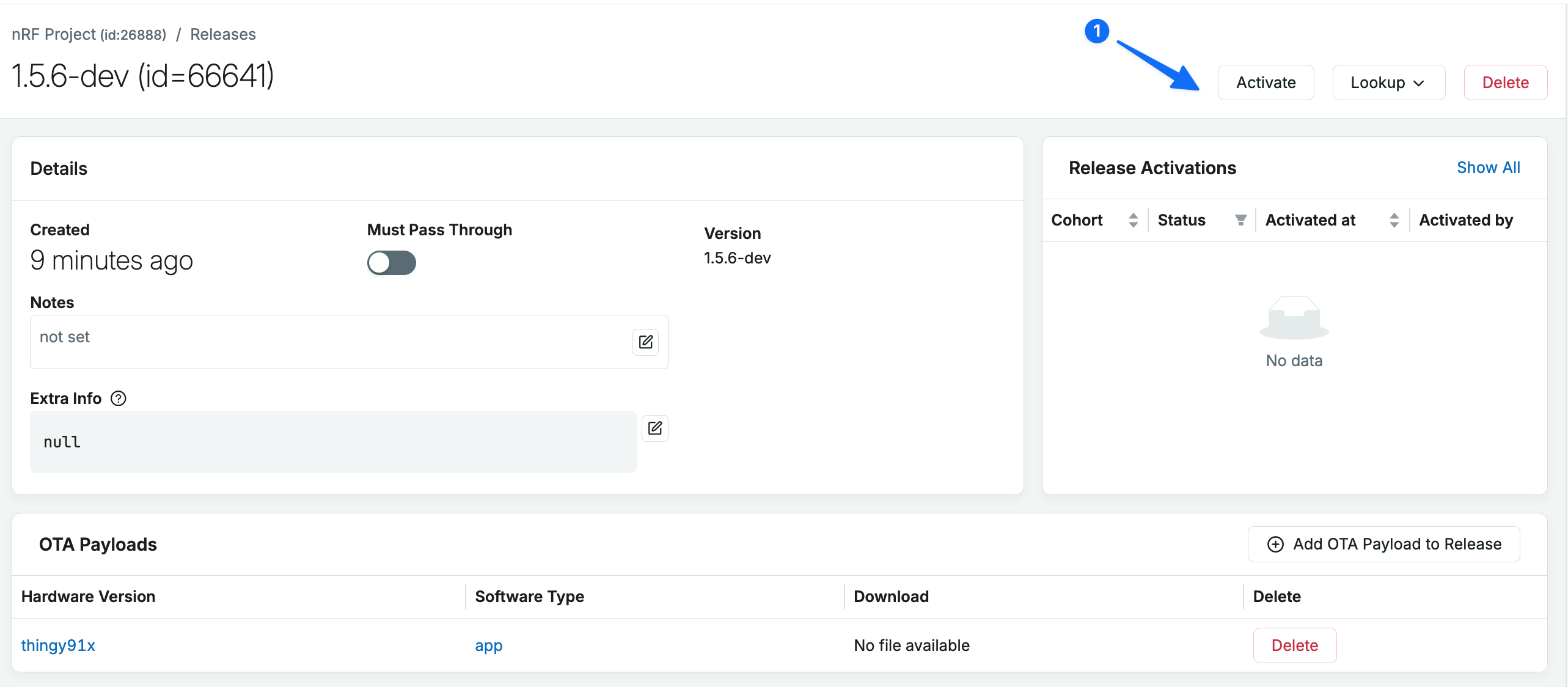

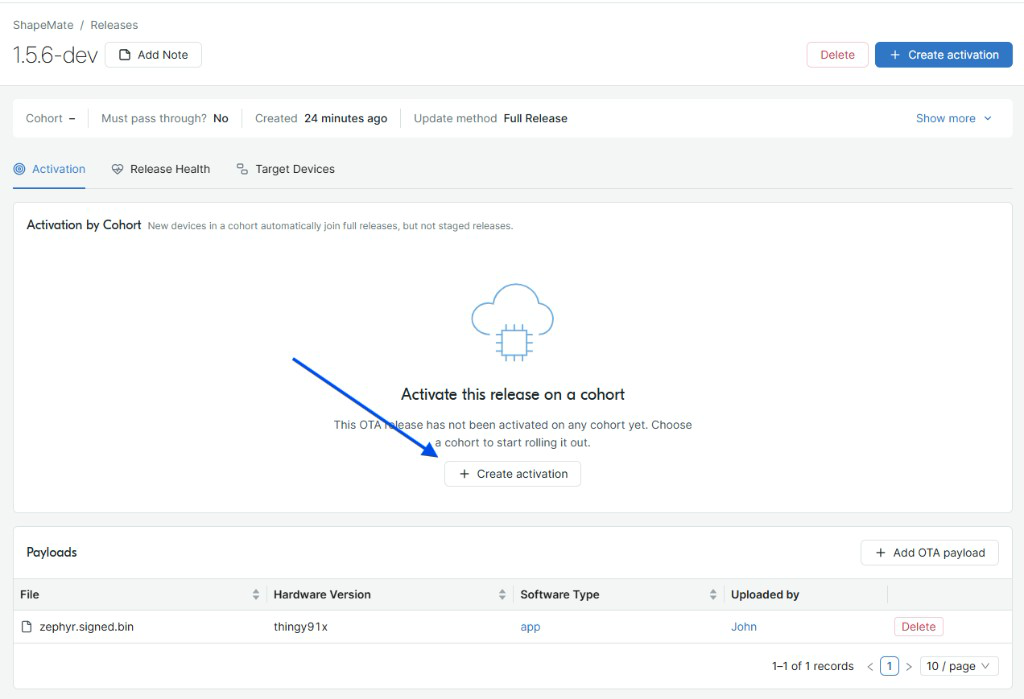

To deploy the release to your fleet, click the "Activate" button.

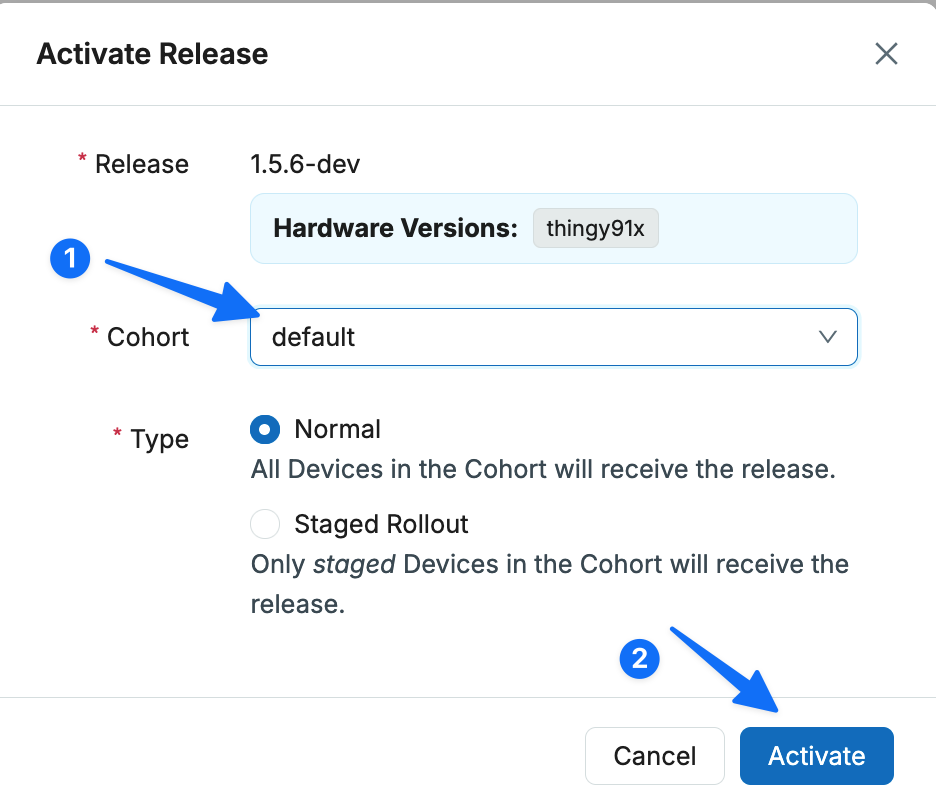

Select the type of release you want. For testing an OTA on a single device, choose "Normal". For deploying to a large fleet, select "Staged Rollout" and select the percent of devices you would like to target.

note

All devices onboard into the "default" cohort and each device belongs to exactly one cohort at a time (unlike legacy nRF Cloud groups). To create custom cohorts and manage which devices are in each cohort, see Cohorts.

Celebrate 🎉

Your update has been successfully deployed. The next time a device checks in with nRF Cloud's FOTA service, it will receive the update.

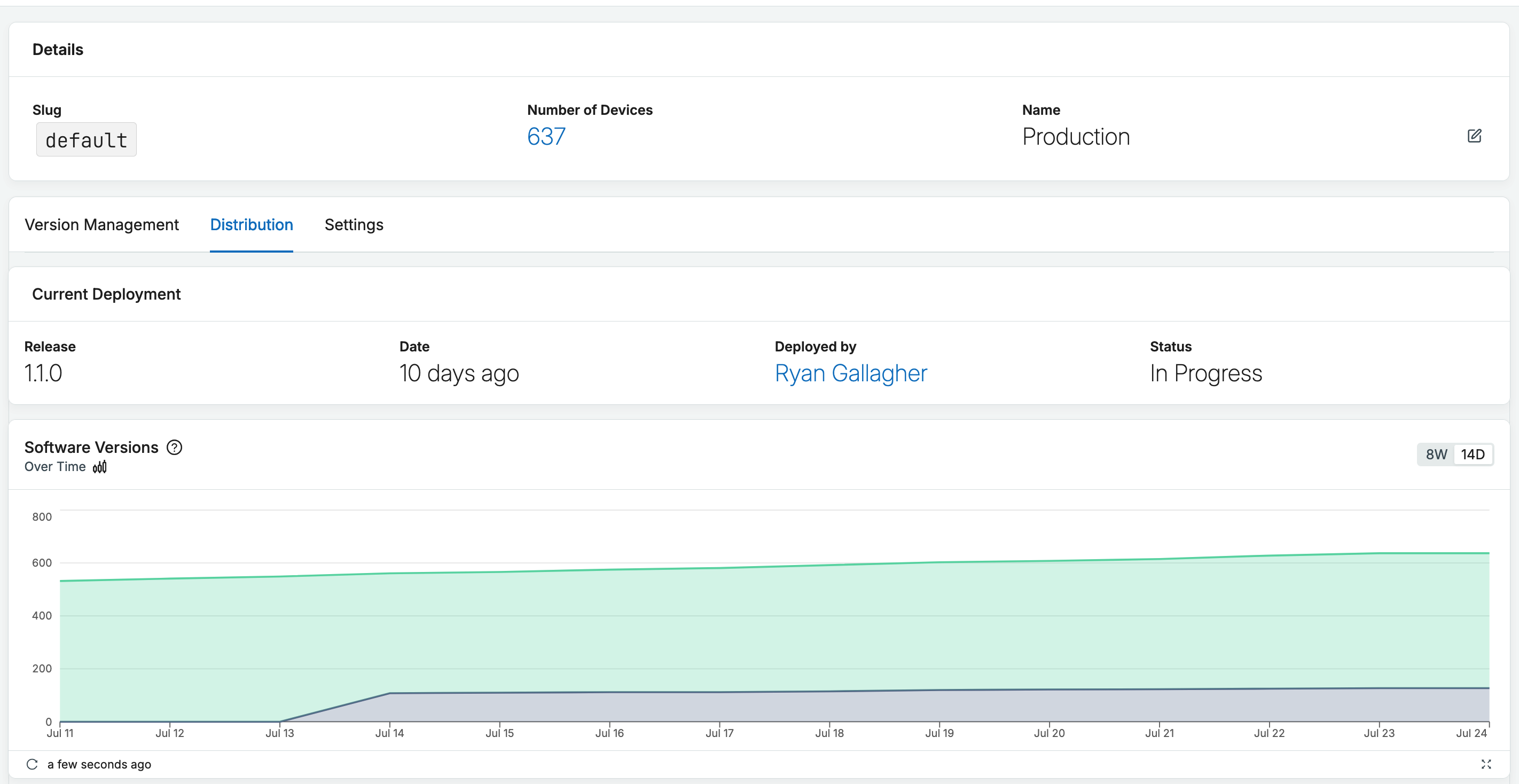

Release progress and adoption can be tracked from the Cohort details page:

How to configure for automated testing

Each device may check for a new Release up to 100 times per 24-hour period. That is ample for production devices, but some nRF Connect SDK samples poll much more aggressively (as often as every minute, including while an update is already downloading), which can exhaust the daily budget in a couple of hours. Once the limit is reached, further checks are rejected until the window resets, which looks like a device that has quietly stopped receiving updates.

While developing or testing, enable Server-Side Developer Mode on the device from its Device Details page. This bypasses the rate limits so repeated OTA checks keep working.

For production firmware, check no more often than your update cadence actually requires (typically a few times a day to conserve bandwidth and power).

How to Automate

To upload releases as part of your CI process the Memfault CLI can be used, e.g

memfault --org-token YOUR_ORG_TOKEN \
  --org YOUR_ORG --project YOUR_PROJECT \
  upload-ota-payload \
  --hardware-version nrf9160dk_nrf9160 \
  --software-type app \
  --software-version 1.2.3 \
  build/app/zephyr/zephyr.signed.bin

Advanced OTA configuration

This guide covers the essentials of getting an application update to your fleet. The underlying OTA engine supports much more — staged rollouts, approval workflows, multiple cohorts, delta releases, downgrade control, release overrides, and the full version matrix.

For more context around all OTA capabilities, see Over-the-Air Updates (OTA).

Frequently asked questions

What about modem and other firmware types?

Only application (app) firmware uses the path above. Modem firmware updates through a separate project in the new nRF Cloud experience using the Memfault SDK. See Modem Firmware Update (FOTA). Devices with several updatable components can also bundle them with multi-component OTA.

Troubleshooting

Symptom	Likely cause
Update never offered to the device	Hardware Version doesn't match the device's board (CONFIG_BOARD) — the most common cause
Release created but no devices update	Release hasn't been activated — activate it on the device's cohort ("OTA Releases" → Activate)
Some devices update but others don't	Devices are in a different cohort than the one the Release was activated on; check each device's cohort
Device reports the wrong version after downloading	Verify the software_version reported by the device matches what was uploaded; Inspect details on the device details page shows exactly what nRF Cloud is sending
Device downloads the same update over and over	The version in the Release doesn't match the version the device reports. Check whether the application's version comes from the VERSION file or CONFIG_APP_VERSION (see Collect Version Information)
Update checks stop working after heavy testing	The device hit the limit of 100 update checks per 24 hours; enable Server-Side Developer Mode while testing

Questions or Feedback?

Reach out to us on the DevZone community forum.
